How to create a Structured text template

Article author
Greg Pietras
  • Updated

What is the context?


Templates are ''blueprints'' for creating documents. Then can be used in different places within the system. They use template codes to merge relevant information (e.g. about a patient, clinician, or appointment) depending on the context of use.

Structured templates are special templates which:

  • Use component sections as the building blocks for the template
  • Use conditions to define whether sections are displayed

What is the purpose of the article?


This article outlines

Before you get started...


Before you create a template you should decide:

  • Where the template should be saved (i.e. the Document Type)
  • What name should be given to a template
  • Who should have access to the template and under what conditions (i.e. the Security Policy)

How do you create a Structured text template?


To create a new Structured Template:

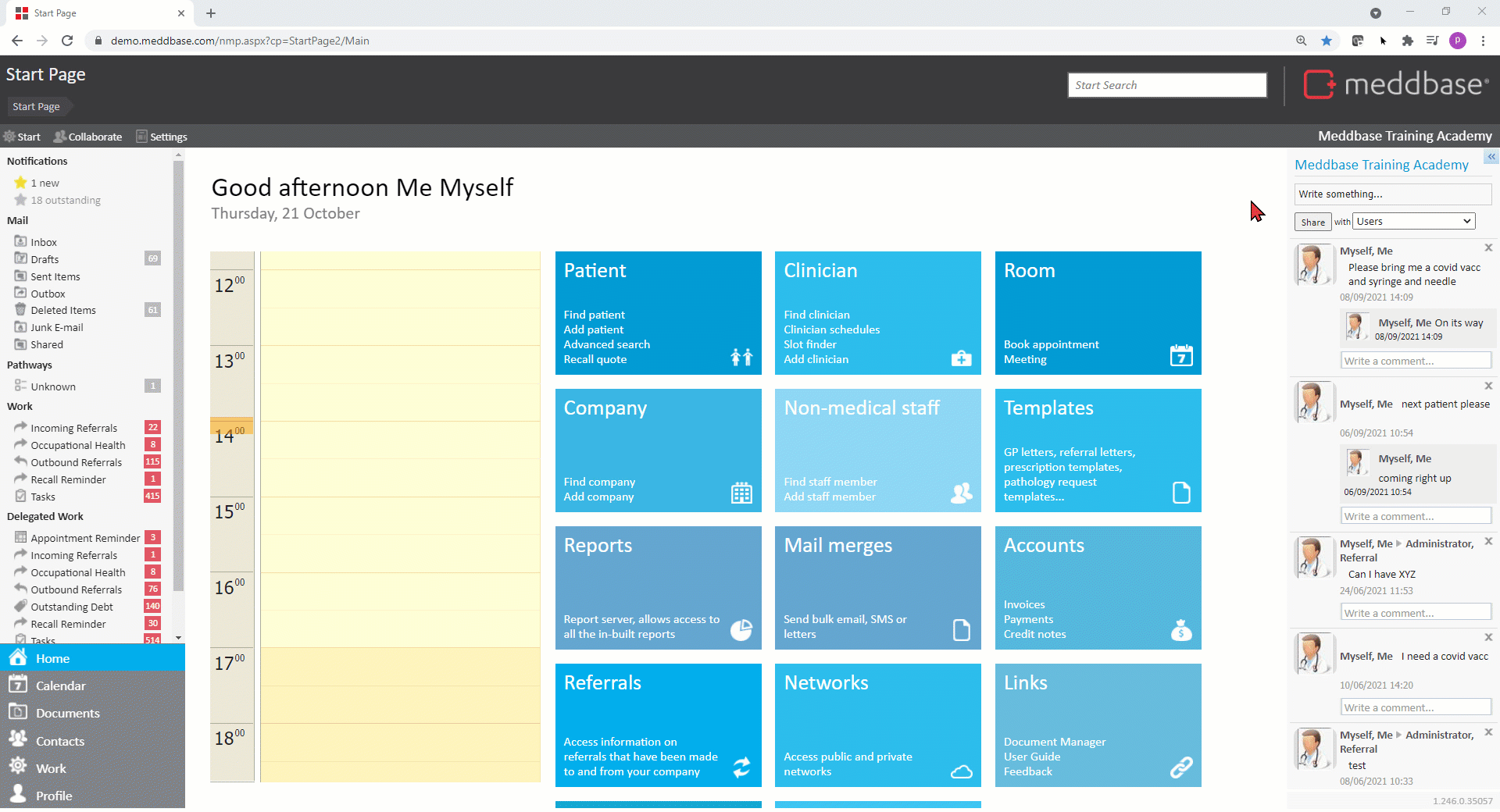

1. From the Start Page, navigate to Templates

2. Click New > Structured template > Structured text template

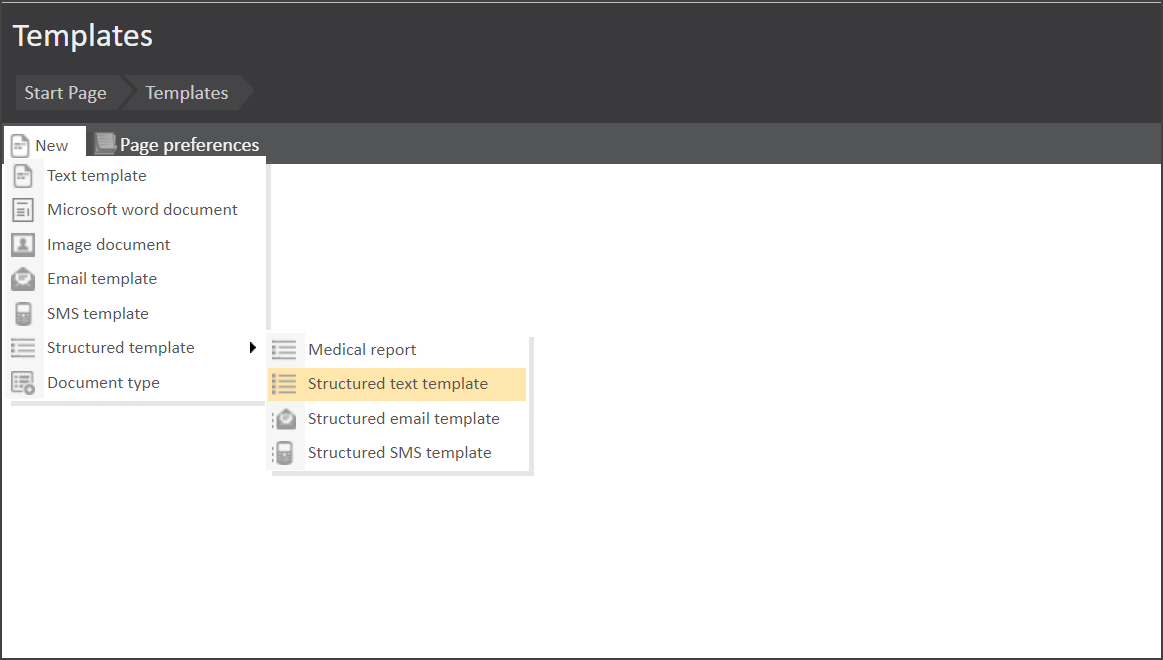

Selecting_new_structured_text_template_from_menu

3. In the New structured template dialog that appears

3.1 Add a descriptive Name for the template

3.2 Set a Type for the template

3.3 Set the Chamber to which the template belongs

3.4 Set the Policy for the document

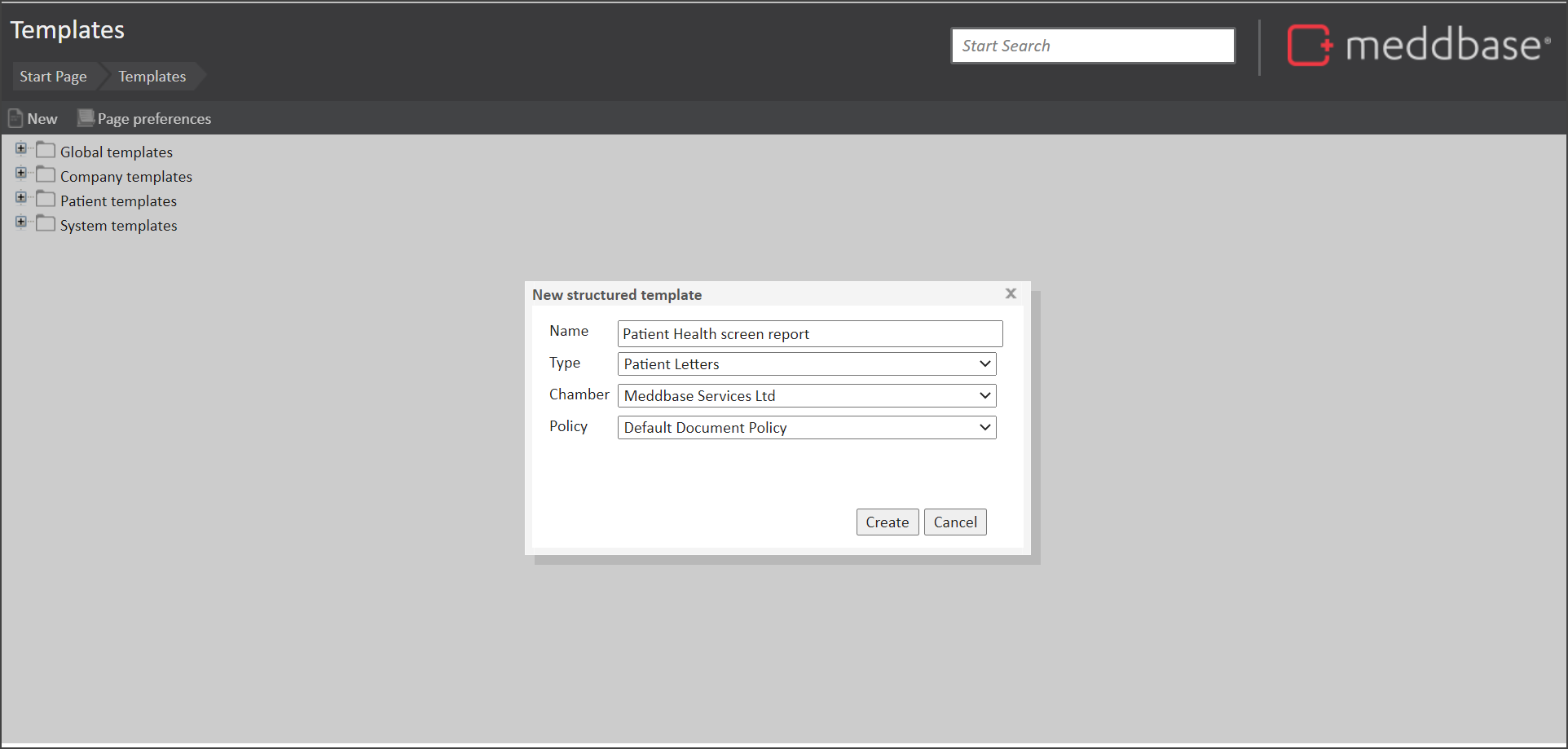

New_structured_template_dialog_with_field_values_populated

Document Types are associated with template Account Types e.g. Patient Templates, Company Templates etc.
Assigning a Type to a Template determines which Account Type it will belong to and therefore determine where it can be accessed and used e.g. from a Patient Record (Patient Templates account type) or from a Company Record (Company Templates account type) etc.

3.5. Click Create

The template is created and the New structured template dialog is still displayed on screen.

4. Click Open

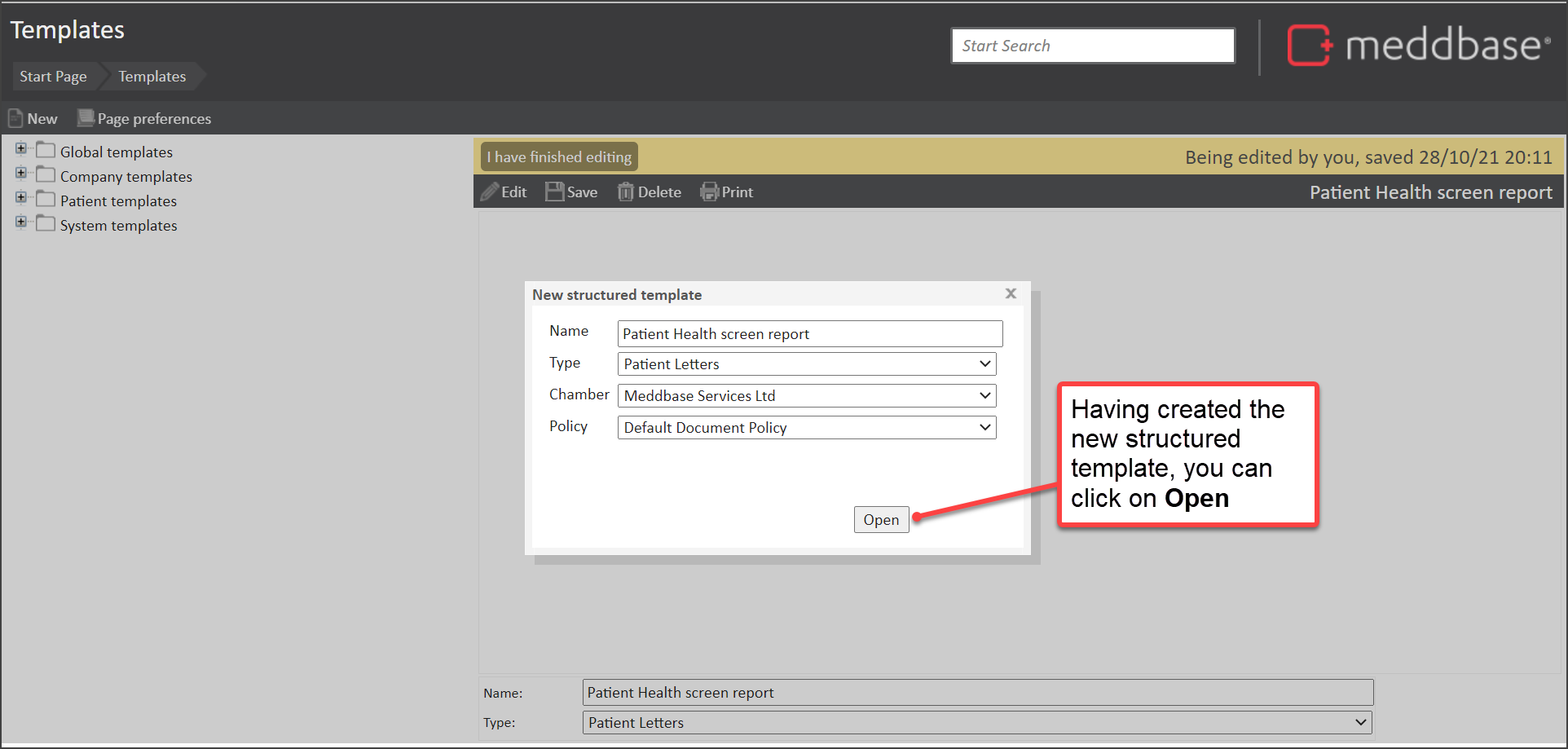

New_structured_template_created_-_with_annotation_pointing_to_open_button

This opens the Structured Template editor.

Want to see how it's done?


The video below presents a walk-through of creating a new structured template.

[Full alt text]

Sections in a Structured text template


The Structured Template editor allows you to add New sections to the structured template.

What are the options and rules for adding new sections?


Within a Structured template there are:

  • Different types of sections that can be added
  • Different rules about how many of the different section types that can be added

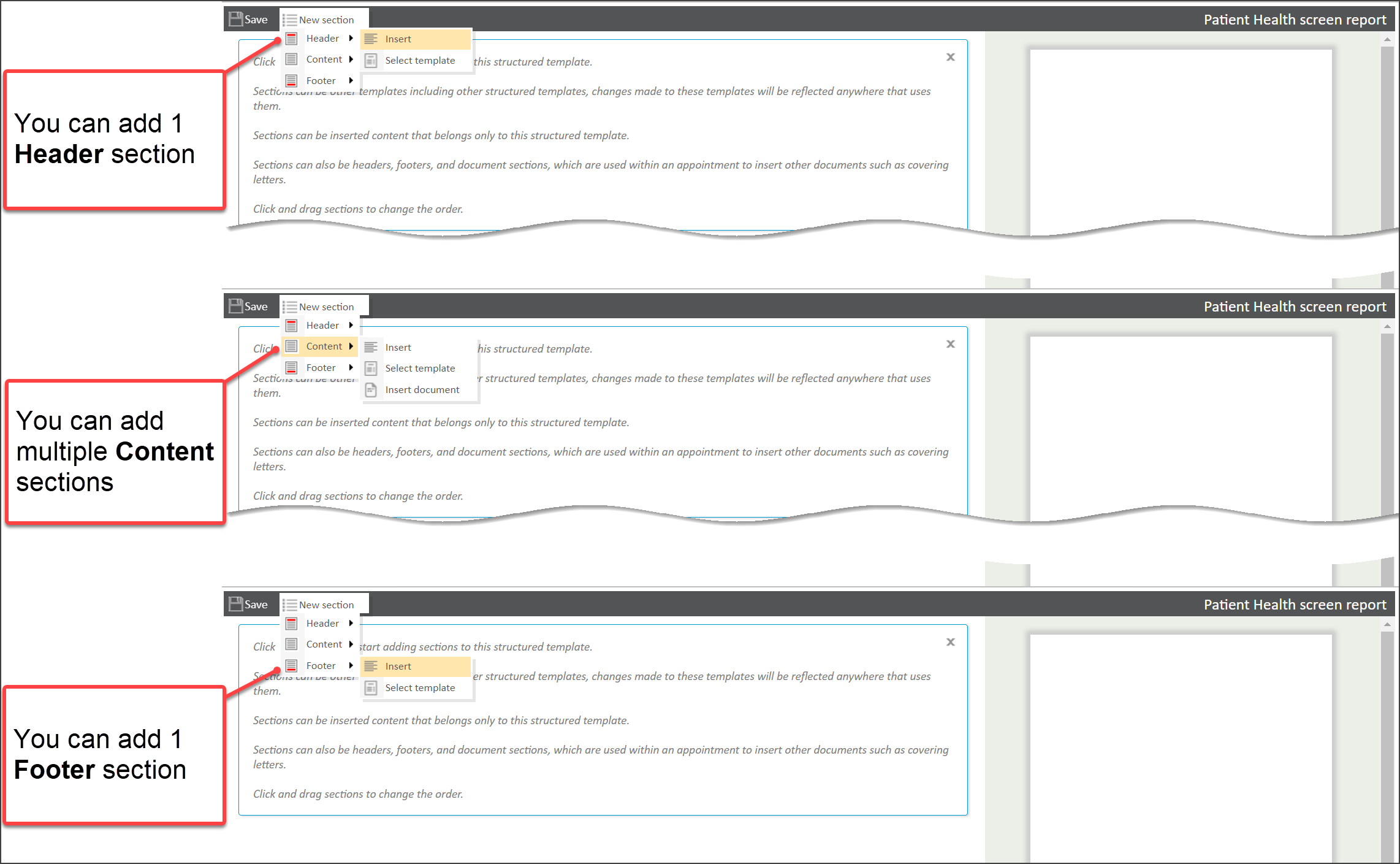

Structured_template_-_section_menu_options_with_annotations

As suggested by the screenshot above and explained in the table below.

Section & menu sub-type Explanation of rules and behaviour
Header You can add 0-1 Headers to a structured template.
Header > Insert Opens the Document Editor and enables you to create a new template there and then for the Header.
Header > Select template Opens the Select a template dialog and enables you to select an existing template for the header.
Content You can add as many Content sections to the Structured template as you need.
Content > Insert Opens the Document Editor and enables you to create a new template there and then for content.
Content > Select template Opens the Select a template dialog and enables you to select an existing template for the content of the Structured template.
Content > Insert document Enables you to select a document for content. This option is available for Content sections only.
Footer You can add 0-1 Footers to a structured template.
Footer > Insert Opens the Document Editor and enables you to create a new template there and then for the Footer.
Footer > Select template Opens the Select a template dialog and enables you to select an existing template for the Footer.

How do you create a new template content section?


Using the example of creating a new template for the content section, you can add a new section as follows:

1. From the Structured template editor

1.1 Select New section

1.2 Select Content

1.3 Select Insert

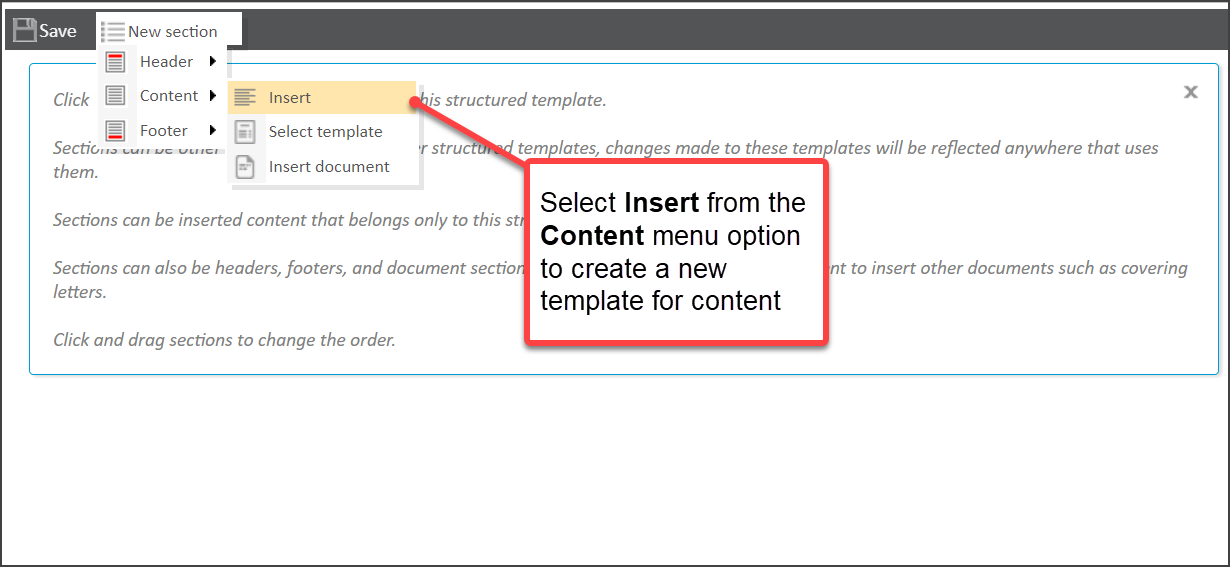

Select_insert_from_content_menu_in_structured_template_editor

2. In the new Document Editor page that appears

2.1 Add content to the document as required

2.2 Format the content as required

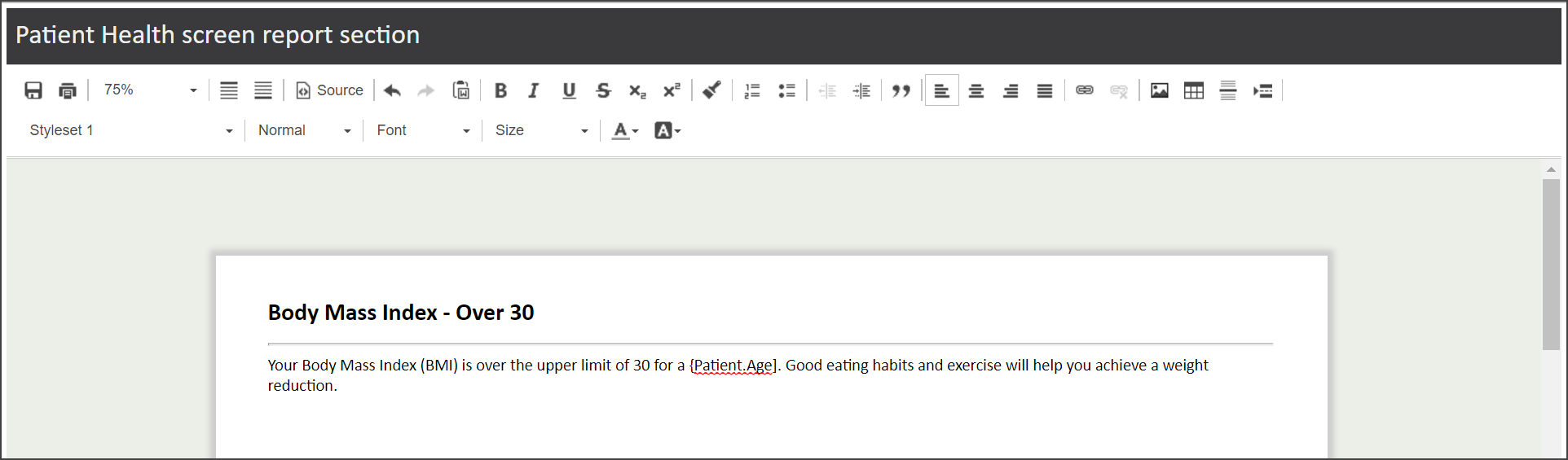

Document_editor_showing_information_for_a_new_content_section_of_a_structured_template

2.3 Click on the Save button in the top left of the Document Editor screen

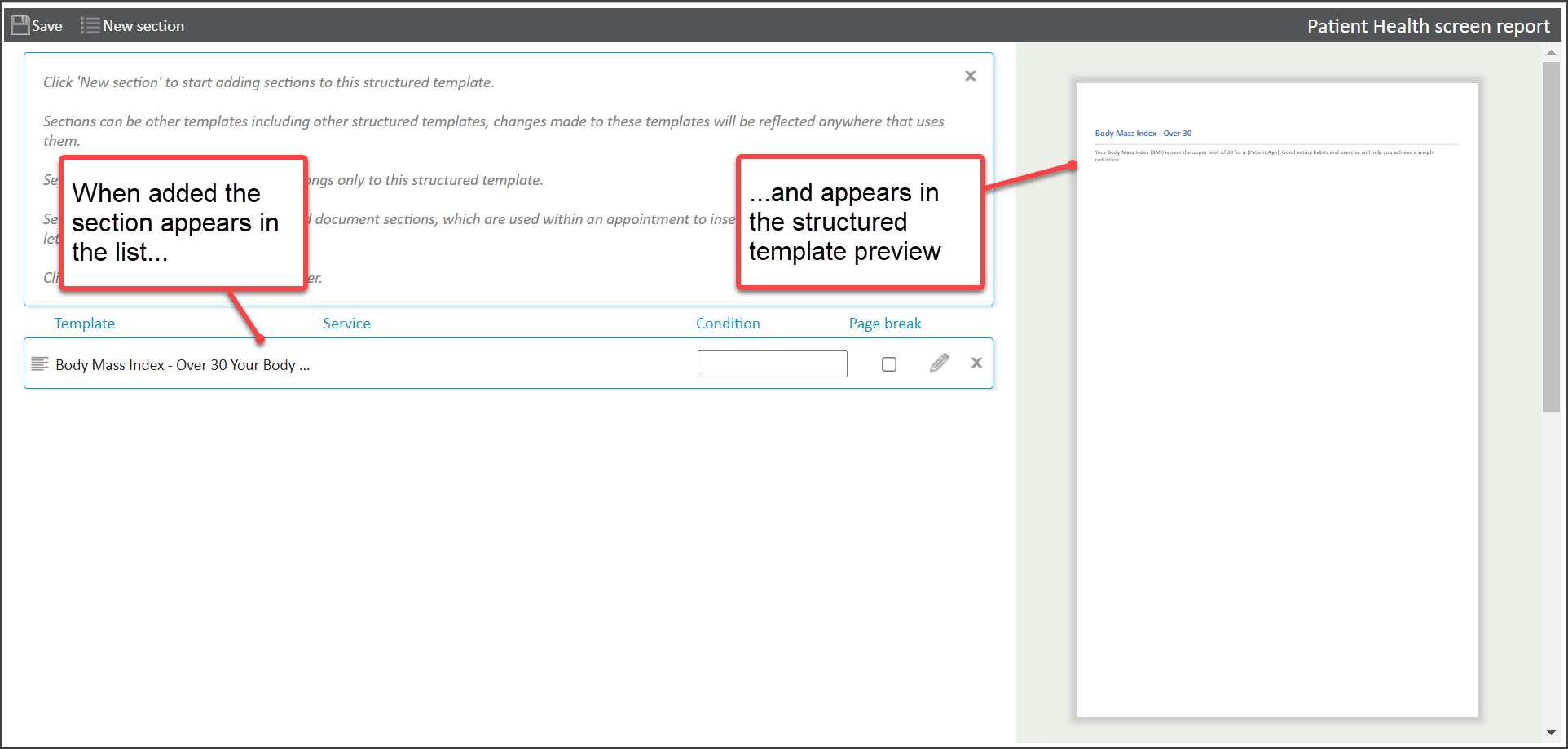

The Document editor tab is closed and the section is shown as added to the structured template.

Section_added_to_a_structured_document_template

3. Click on Save in the top left of the Structured template screen

4. Continue to add in further sections as needed

How do you move the relative position of sections within a structured template?


You may find that the need to adjust the relative position of content sections within a structured template. To do this from within the Structured template editor:

1. Select the section that needs to be moved

2. Drag the section to the position where it needs to live

3. Click Save in the Structured template

Move_the_relative_position_of_sections_via_drag_and_drop

Using Conditions in structured templates


When you add Templates and/or Documents as sections to your Structured template, these sections can be displayed according to conditions.

How do conditions work?


Structured template Conditions use Template Codes that can be evaluated using a condition type against a value. Where the condition is met (i.e. it is 'true'), the section is displayed.

Conditions follow the structure

<TemplateCode><condition type><value>

So an example of a condition applied to a section could be

Patient.Sex="Female   "

In this example,

  • Patient.Sex is the Template Code
  • = is the condition type of 'equals'
  • "Female   " is the value that the Template Code evaluates using the condition type

When the structured template is generated by a user and the condition is met, then the section is displayed.

What condition types are available?


There is a range of condition types that are supported. These types are listed in the table below with examples and explanatory notes.

Condition Type Examples Notes
Equal To (Text)


Patient.Sex = "Female   "

Patient.Sex = "Male      "

Where text is used, the value needs to be enclosed in double quotes.
Appointment.AppointmentType = "Consultation"
Equal to (Numbers / Dates)

Patient.Data.PH = 5

Where numbers or dates are used, the value is not enclosed in quotes.
Appointment.Fields.ReviewDate = 01/10/2021
Not equal to (Text) Appointment.Forms.Investigations <> "" This condition would be met where the field value is not empty.
Not equal to (Numbers / Dates)
Patient.Data.Pulse <> 200

This condition would be met where the patient pulse value recorded as data is not 200.
Appointment.Fields.ReviewDate <> 01/10/2021 This condition would be met where the date is not equal to 01/10/2021.
Greater than Patient.Data.BMI > 30 This condition would be met where the patient's BMI value recorded as data is greater than 30.
Less than Patient.Data.BloodPressure < 150 This condition would be met where the patient's Blood pressure value is recorded as data is less than 150.
True or False (Checkboxes)
Appointment.Fields.HasHGVLicense.List = "True"

This condition would be met where there is a 'Has HGV License' field on an appointment form and it is ticked.

If the field title has special characters e.g $()!* you must not include them in the Condition.

True or False (Checkboxes) Appointment.Fields.HasHGVLicense.List = "False"

This condition would be met where there is a 'Has HGV License' field on an appointment form and it is unticked.

If the field title has special characters e.g $()!* you must not include them in the Condition.

Can one section have multiple conditions?


Yes, it can. So using the following example

Patient.Data.BMI > 30 and Patient.Sex = "Male      "



A section would only be displayed if a BMI meta field on a clinical form is greater than 30 and the patient's sex is recorded as male.

How do you add a condition for a section in a Structured template?


To add to a condition for a section, from the Structured template editor

1. Click in the Condition field for the relevant section

2. Type in the condition text

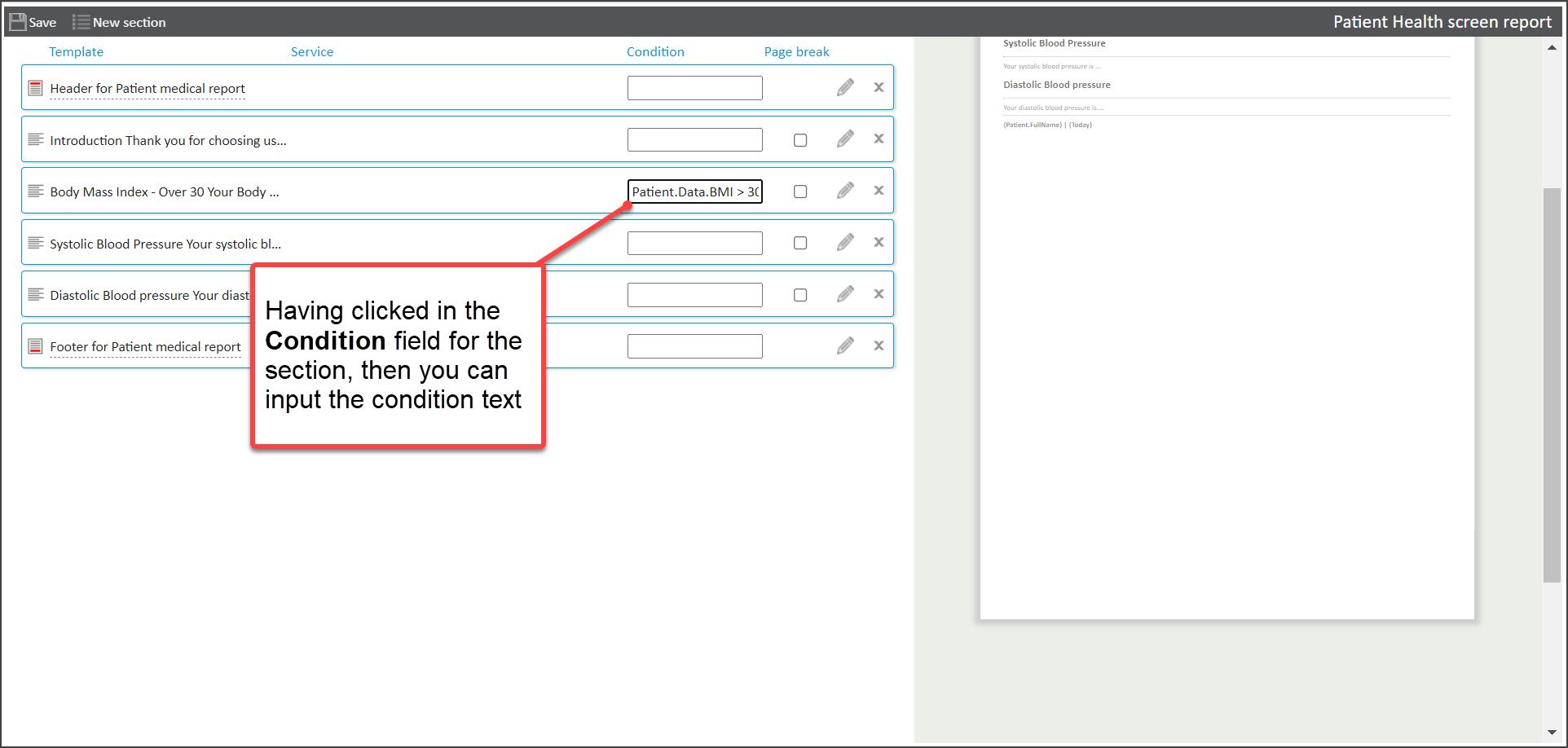

Adding_condition_text_to_a_section_in_the_Structured_template_editor

3. Click on the Save button in the top left of the Structured template editor

The condition is applied for the section.

Using a template in the correct context


It is very important that the logic behind Template Codes being used in the correct context is preserved throughout all sections of the Structured Template.

For example, if the intention is to use the template on a Patient Record, but template sections contain template codes evaluating company information, the document generated will contain errors.
